COMBINED MILL
| PLANT CAPACITY | 250'000 – 500'000 tons/year |
| STARTING BILLET SIZE | 130x130mm up to 150x150mm / 6 – 12 - 16 m |
| FINAL PRODUCT | Rebars 8 – 50 mm Round Bars 8 – 50 mm Wire rod 5 – 18 mm Garret line 20 – 50 mm Squares 16 – 40 mm Angles 25 – 90 mm Tee 25 – 80 mm Channels 30 – 120 mm Flats 45x5 – 100x12 mm |
| ROLLING SPEED | Max 20 m/s for Rebars Max 120 m/s for Wire Rod Max 18 m/s for Light Sections |
* indicative data
This plant assure the production of a wide range of products, which makes it suitable to meet the broad market’s demand.

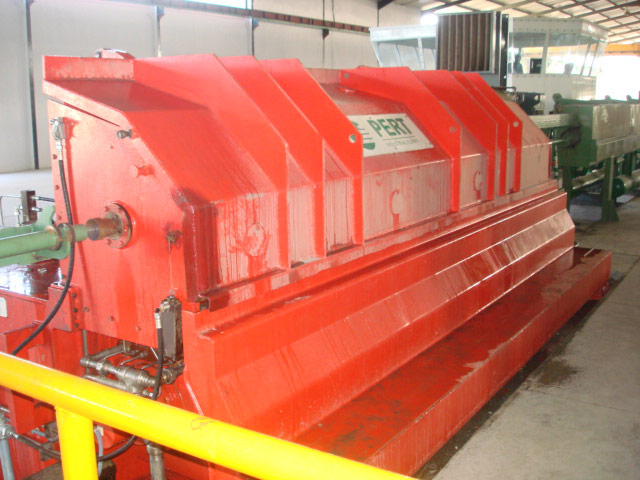

As the plant’s utilization factor is very low, the changing speed between a product to another one is a very important matter as regards the cost-effectiveness of the production. Thanks to the technology of PERT BS STANDS and PERT’s FLUR® System for the ring changing on the finishing block, the setting times of the rolling line to change the product are reduced to the minimum and consequently also reduced the shutdown-times of the plant.
Using the rolling rings instead of the traditional rolling rolls, it is considerably reduced the stock area for these last ones.
